Using MagicTree - Quick Introduction

Let me give you a whirlwind tour of MagicTree. You can also read the detailed documentation.

You start with an empty tree:

MagicTree startup

You begin by adding some data to the tree. For example, you add some networks and hosts that are in scope of the test.

Adding data

MagicTree stores data in a tree structure. This is a natural way for representing the information that is gathered during a network test: a host has ports, which have services, applications, vulnerabilities, etc. The tree like structure is also flexible in terms of adding new information without disturbing the existing data structure: if you at some point decide that you need the MAC address of the host, you just add another child node to the host node.

While tree structure is natural for representing the information, it is not very convenient for actually using the data. To feed data to programs we generally want lists or tables of items. MagicTree allows extracting the data and presenting it in table (or list) form. The query interface uses XPath expressions to extract data.

So, suppose now we want to run a ping sweep on all targets in scope. First we select them, using a query:

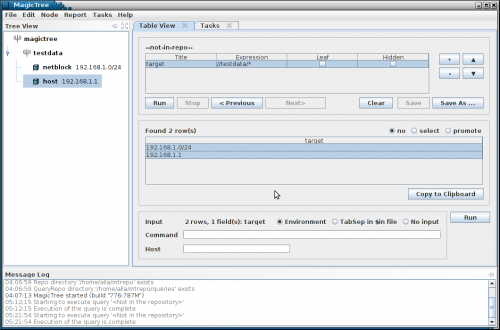

Query

The data we want is now in the table, so we can feed it to nmap:
Executing nmap with data from MagicTree

Note the $in parameter in nmap command line. It is a temporary file containing tab separated query results. The nmap XML output goes to $out.xml . $out is a special prefix which tells MagicTree that it contains some command output. Clicking "Run" will start nmap.

You can start multiple commands in parallel. You can run things locally and remotely (on remote hosts that have SSH daemon and a Unix-like shell). You see all running and finished commands in Task Manager.

MagicTree Task Manager

The command has produced both human-readable output and an XML file. We can import XML data into the tree.

Importing XML data

The newly added tree nodes are shown in green in the tree.

Now let's run a TCP port scan for all discovered hosts. We will run a query that selects hosts with state "up" and again feed the data to nmap. We will then import the new data in the tree as we did before. At any time you can access the console to any running task - local or remote.

Nmap task console

We can continue querying the data and feeding it to various tools. The query shown on the screenshot below lists all open ports and hosts:
Query listing all open ports

For tools that do not produce XML, the text output is still retained and can be viewed and included in reports, but can not be directly imported into the tree. We are developing wrappers for commonly used tools to convert text output to XML. The tree can contain text, images, XML documents, and even arbitrary binary data. We also support cross-references within a tree, so that one node can refer to another. This is convenient when you need to link a finding to affected hosts, and so on.

Once you have all the data you want, you can use it to produce a report. Reports are generated from templates. A template is simply an OpenOffice or Microsoft Word file that contains all the static data and formatting you want (your company logos, headers, footers, etc.) and placeholders for the data coming from MagicTree. The placeholders are XPath expressions, similar to ones used in a query. Here is an template snippet that produces a host section:

Report template

Note that you can have automatically generated hyperlinks in your report, so you link to detailed results from a summary, to command output from host details and so on.

Several sample report templates come with MagicTree. You can modify and customize them to your liking.

Imagine, after spending a few days testing, just clicking on "Generate Report" and having all (or the important part) of your test data in a human readable report. No more mind-numbing copy-pasting. Unbelievable, right? You have to try it. :)
